insulation
plaster
steel beam
sedum plants
gutter
soil
filter fleece
perforated
membrane
dpm

ENVIRONMENTAL STRATEGY

RAINWATER HARVESTING PRECEDENT
HEX-SYS / open architecture
[Guangzhou, Guangdong, China, 2015]
This real-estate developer’s showroom in China uses its undulating roof as a rainwater harvesting system. It is comprised of 26 hexagonal steel structure modules supporting roofs shaped like inverted umbrellas. Some modules are enclosed with glass panels whereas others are used as exterior shelter space. Each of the hexagonal cells has six angled gutters which point towards a central pipe column that contains a flue for directing rainwater to a tank so it can be reused to irrigate the surrounding landscaping and refill a small pond.
RAINWATER HARVESTING SYSTEM
GREEN ROOF PRECEDENT
brooks avenue house / bricault design
[Los Angeles, USA, 2009]

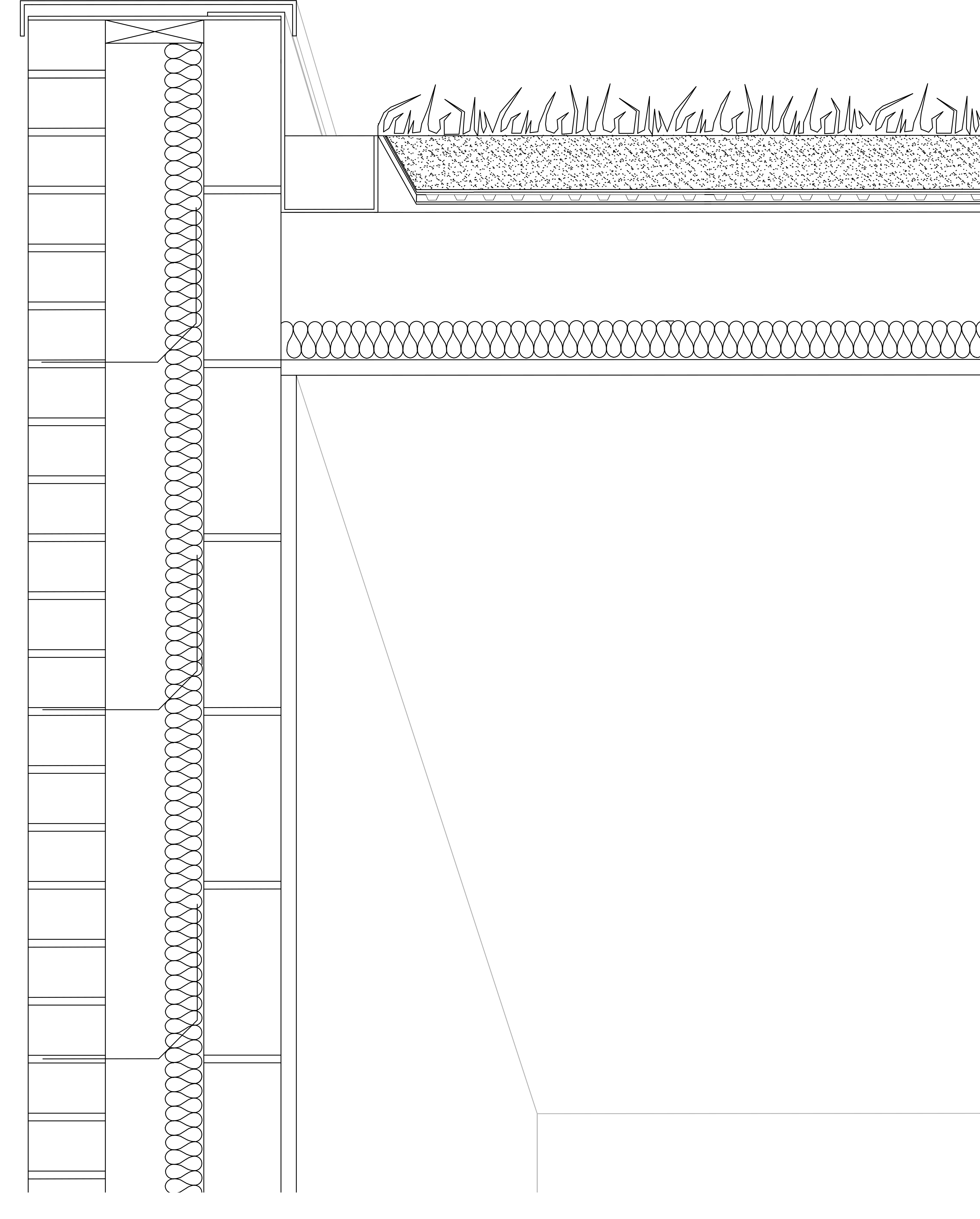

sedum roof detail section 1:5

existing tree study

existing trees with concept

remaining trees with concept

TREE STUDY
A rainwater harvesting system is used in both the greenhouses and the cafe and grocery, due to their undulating roofs. Both are comprised of inverted 'umbrella-like' roof units which guide the rainwater down to the centre and down through a pipe into the ground and stored.


The image above shows one rainwater harvesting inverted roof for the greenhouses.


The section below shows the central funnel-like collumns collecting water and the journey it takes through the pipes to a storage tank.


mains water supply pipe as back up

rainwater harvesting storage tank

rainwater pumped back through pipes to water plants, green roofs on houses and flushing housing units toilets

A sedum roof method is used on all the housing units to make up for lost vegetation from the site.

chiltern house / WOW archiects
[Singapore, 2013]
GREEN WALL PRECEDENT
Steel wire used as plant climbers. These will become natural dividing walls between the house's gardens.
